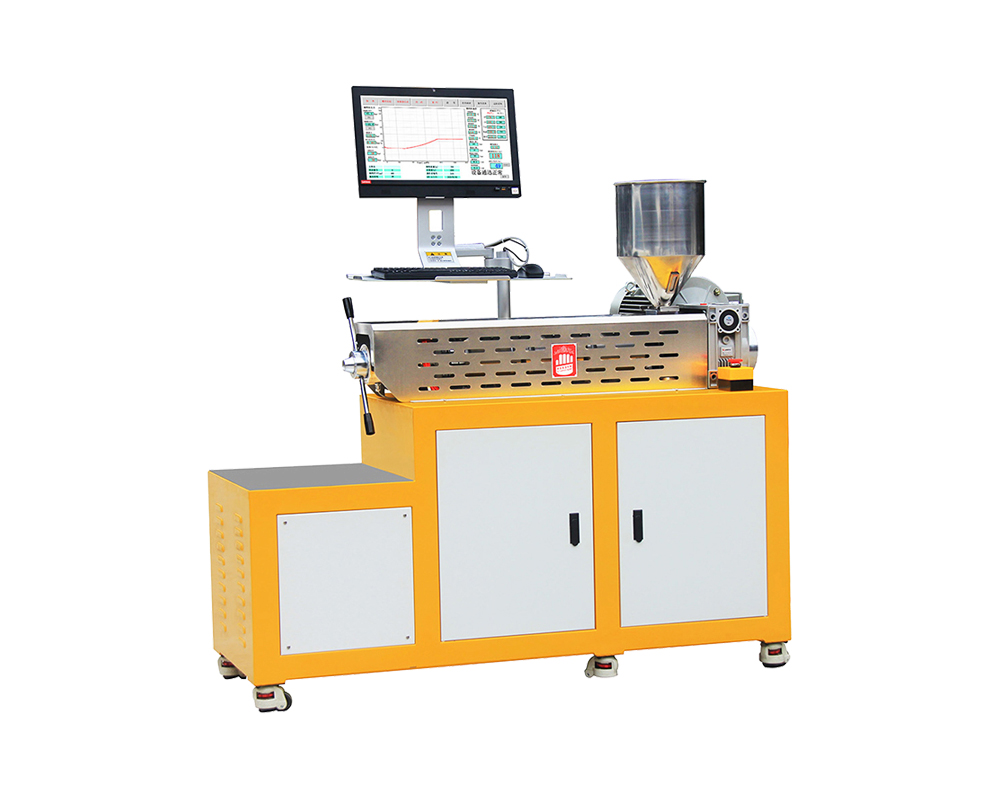

XH-431 過濾性測試機 XH-431 Filter testing machine
簡介:本機適用于高分子材料以擠出壓濾方式測試顏料、添加劑及色母粒等聚合物的分散性能。
Introduction: This machine is suitable for testing the dispersion performance of polymers such as pigments, additives, masterbatches by extrusion and pressure filtration.
應用范圍:Application
填充功能母粒新產品研發與配方優化
Research and development of new products and formula optimization for filling functional masterbatch
測試顏料色母粒及其他填充物的分散性Testing the dispersibility of pigment, masterbatches and other fillers
顏料色母粒質量檢驗與控制Quality inspection and control of pigment masterbatch
熔體體積流率的高精度計量High precision measurement of melt volume flow rate
熔體泵前、泵后熔體壓力的精確測量Accurate measurement of melt pressure before and after the melt pump
技術參數(Technical Parameters):
型號 Model No. | XH-431-EN | XH-431-ASTM |
控制系統 Control system | 品牌電腦 人機界面 Computer Control | |
螺桿直徑 Screw diameter | 20、25、30mm可指定(or customized) | |
主電機功率 Main motor power | 4kW或指定 | |
長徑比 L/D | 28:1 | |
螺桿轉速 Rpm Screw speed | 0-95rpm變頻調速 | |
熔體泵 Melt pump | 臺灣品牌 Taiwan brand | _ |
壓力傳感器 Pressure sensor | 0-35Mpa進口品牌 | |
濾網 Filter | 參照EN13900-5:2005標準 According to EN13900-5:2005 standard | 參照 ASTM 標準 According to ASTM standard |
體積mm(W×D×H) Outside dimension | 1553×650×1350mm | 1553×650×1350mm |
重量(kg) Weight | 約350kg | 約300kg |
電源 Power Supply | 3∮,AC380 | 3∮,AC380 |
特殊型號可根據客戶要求設計制作。
Special extruder can be designed according to the requirements of customers.
